Example Data: tmp_hio_closedloop_intro.gen

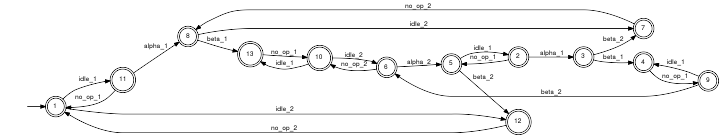

Dot-processed graph as SVG-image

Token IO

<Generator>
"Project(PrefixClosure(HioShuffle(Simple Mac...Machine_2)) [minstate],Generator)))"

%
%  Statistics for Project(PrefixClosure(HioShuffle(Simple Mac...Machine_2)) [minstate],Generator)))
%
%  States:        13
%  Init/Marked:   1/13
%  Events:        8
%  Transitions:   22
%  StateSymbols:  0
%  Attrib. E/S/T: 0/0/0
%

<Alphabet>
alpha_1       beta_1        no_op_1       idle_1        alpha_2       beta_2
no_op_2       idle_2
</Alphabet>

<States>
<Consecutive>
1              13
</Consecutive>
</States>

<TransRel>
2              alpha_1       3
2              no_op_1       5
3              beta_1        4
3              beta_2        7
4              no_op_1       9
5              idle_1        2
5              beta_2        12
6              alpha_2       5
6              no_op_2       10
7              no_op_2       8
8              beta_1        13
8              idle_2        7
1              idle_1        11
1              idle_2        12
9              idle_1        4
9              beta_2        6
10             idle_1        13
10             idle_2        6
11             alpha_1       8
11             no_op_1       1
12             no_op_2       1
13             no_op_1       10
</TransRel>

<InitStates>
1
</InitStates>

<MarkedStates>
<Consecutive>
1              13
</Consecutive>
</MarkedStates>


</Generator>
